Phonostage

What was originally intended to be a simple RIAA add-on for the Makua Preamp has quickly spiralled into the quietest and probably most versatile phono stage ever built.

MC/MM input stages are optimized for current noise and voltage noise respectively. Unlike the more common arrangement of an MC head amp feeding into the MM stage, the two stages are fully independent, realising an equally short signal path for both. Input gain is switchable in 5dB steps over a 40dB range. Input resistance and capacitance are individually switchable. Available EQ settings cover practically all known cutting curves ever used, including most 78RPM.

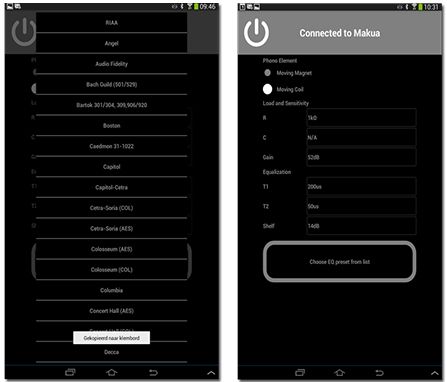

All settings are software controllable, either on the fly using a PC or tablet computer or directly stored under the pre-set buttons. And since the preamp can route any input through the phono stage, only one is needed even if you have multiple turntables and elements connected.

Read more

Key features

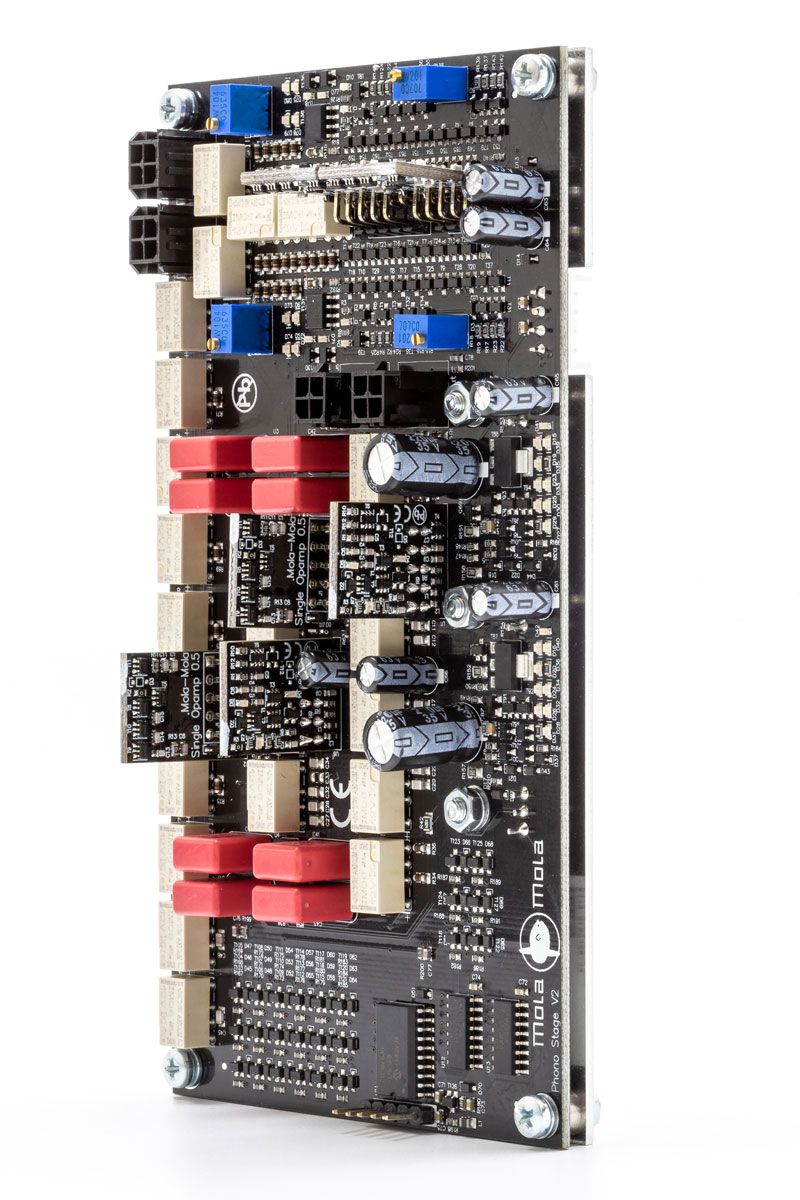

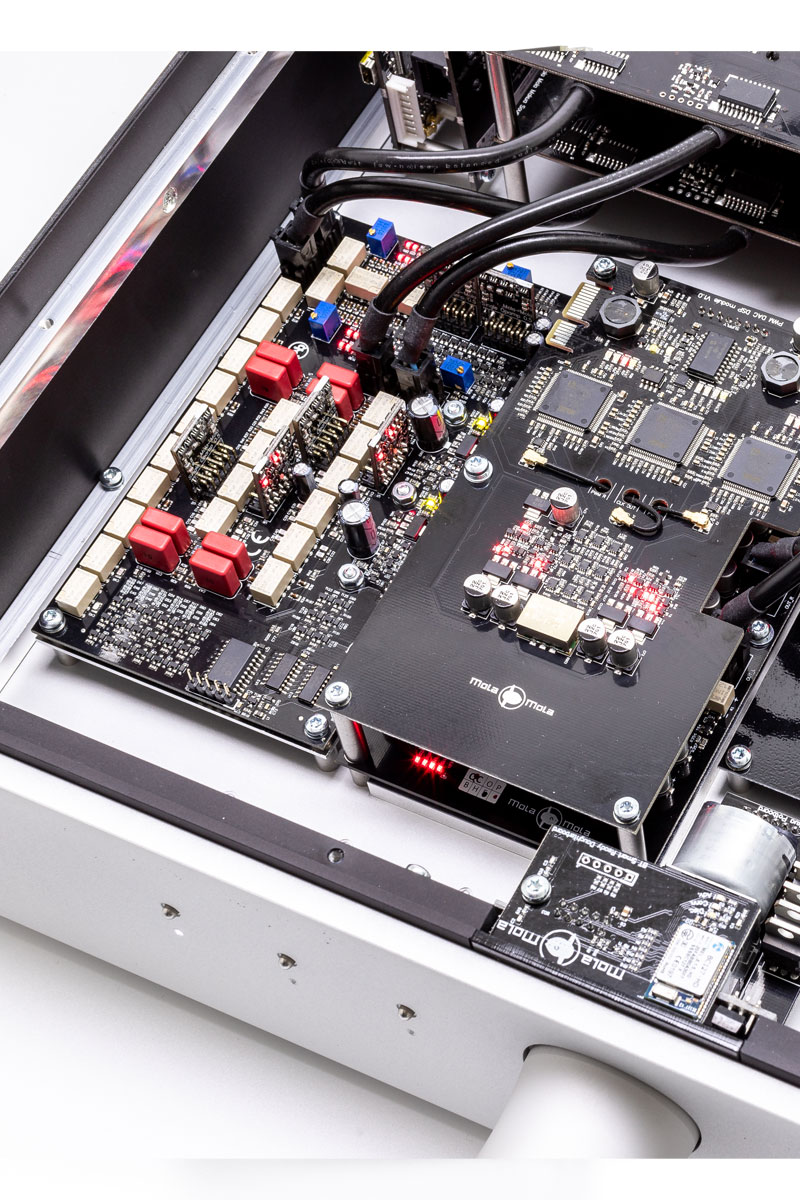

Phono foto

Performance

Input noise (MC): 0.35 nV/rtHz
Input noise (MM): 0.9 pA/rtHz
Sensitivity: variable from 30 uV to 5 mV
THD, IMD: not measurable: +/-0.1 dB.

Available time constants

t1: 200, 250, 318, 400, 450 us
t2: 50, 64, 75, 100 us
bass shelf: 14, 18, 20dB
