Tambaqui

Digital that’s as good as analogue

Responding to popular demand, Mola Mola launched the famous discrete DAC from the Makua as a separate unit.

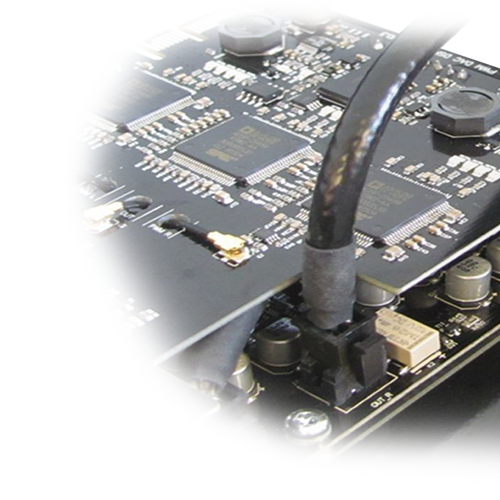

Mola Mola’s Tambaqui DAC is the perfect upgrade for owners of complete high-end systems who want to retain the characteristic sound of their existing preamplifier whilst lifting their digital sources to another level. The converter is a two board stack. On the first board, all incoming digital audio is upsampled to 3.125MHz/32 bits and converted to noise shaped PWM. On the other board are two mono DACs, in which a discrete 32- stage FIR DAC and a single-stage 4th order filtering I/V converter, convert the PWM into analogue with a breathtaking 130dB SNR. This is near the theoretical limit for 24-bit files and far beyond that of even quad-speed DSD. Uniquely, distortion remains below the noise floor even for full scale signals.

With the addition of a lossless digital volume control and headphone outputs, it is also the ideal control hub of a minimalist audio system for music lovers who have moved on to a digital sources only system. This DAC, combined with a pair of Mola Mola Kaluga monoblocks constitutes the finest digital replay chain available, irrespective of price.



Tambaqui roonready
Tambaqui roonready
The music player for music lovers
The Mola Mola Tambaqui is Roon Ready certified!

Analogue that’s as good as digital

Makua foto
Makua foto
Makua foto

Key features

tambaqui foto

Operating Principle

PWM DAC with 32-stage discrete analogue FIR output stage. Avoids “sigma delta” tones and “R2R” glitch and low-level linearity errors.
Asynchronous upsampling to 3.125MHz/32 bit. 7-th order noise shaper clearing 80kHz band. Each input rate has an optimized upsampling filter chain.

I/O

Optical (Toslink)
S/PDIF (Cinch)
AES/EBU (XLR)
USB type B
Ethernet (Roon Ready)
Bluetooth (SBC, AAC, APTX, LDAC)
I²S over HDMI
Balanced output (XLR)
Headphone output (6.3mm Jack, Balanced XLR 4pin)
2 programmable trigger outputs (3.5mm Jack)

Supported formats

PCM up to 384kHz/32 bits (>192kHz and >24 bits via USB and Roon only)
DoP and Native DSD up to quad speed (USB and Roon only)

Performance

Full-Scale Output Level (XLR): 18dBu
Full-Scale Output Level (headphone): 18dBu
Signal to Noise Ratio: 130dB
THD, IMD: not measurable (estimated -140dB)
Bandwidth: Up to 80kHz (apodizing response)
Integrated jitter: <1ps from 10Hz upwards, <300fs from 1kHz upwards
Jitter rejection: >80dB at 1Hz after 20 seconds of loc

CONTROL

4 programmable presets
(Premium) Remote Control
Mola Mola Remote app

Dimensions and weight

200mm (W) x 110mm (H) x 320mm (D)
5.2kg
